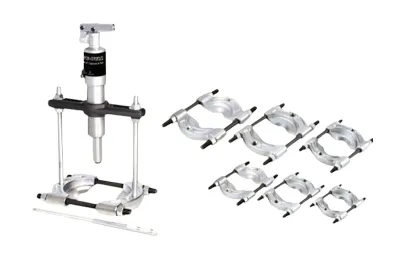

Double-acting hydraulic design, used for dismantling large shaft-type and hole-type workpieces.
The manual reversing control system is used to lift and lower the trolley, clamp the workpiece, and pull the device.
The wheeled trolley is easy to move and can be used in different locations at any time.
Model | Size | Stroke (mm) | Spread (mm) | Pulling Depth of Minmum Open (mm) | Depth of Maximum open (mm) | Weight (kg) |
14AMP100 | 100T | 200 | 200-1000 | 450 | 375 | 720 |
14AMP200 | 200T | 250 | 300-1500 | 680 | 550 | 1300 |
14AMP300 | 300T | 300 | 400-1800 | 980 | 750 | 1820 |
14AMP500 | 500T | 350 | 500-2000 | 1050 | 920 | 2100 |
14AMP630 | 630T | 350 | 500-2000 | 1250 | 1000 | 2500 |
