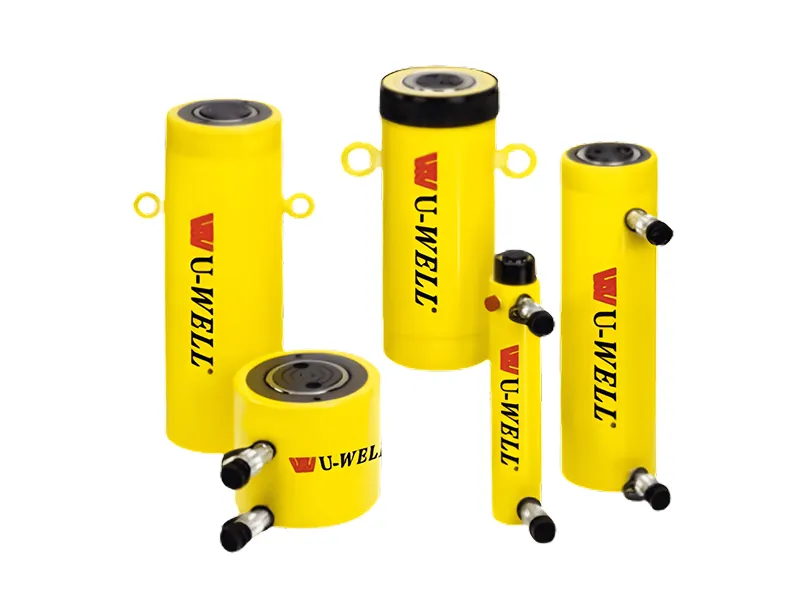

Collar threads, plunger threads and base mounting holes for easy fixturing (on most models).
Baked enamel finish for increased corrosion resistance.
Removable hardened saddles protect plunger during lifting and pressing.
Built-in safety valve prevents accidental over-pressurization.
CR-400 couplers included on all models.
Plunger wiper reduces contamination, extending cylinder life.
| Cylinder Capacity ton (kN) | Stroke | Model Number | Cylinder Effective Area (cm²) | Oil Capacity (cm²) | Coll. Height | ||
| Push | Pull | Push | Pull | (mm) | |||
| 10 (101) | 254 | RR-1010 | 14.5 | 4.8 | 368 | 122 | 409 |
| 305 | RR-1012 | 14.5 | 4.8 | 442 | 147 | 457 | |
| 30 (295) | 209 | RR-308 | 42.1 | 19.1 | 879 | 400 | 395 |
| 368 | RR-3014 | 42.1 | 19.1 | 1549 | 703 | 549 | |
| 50 (498) | 156 | RR-506 | 71.2 | 21.5 | 1111 | 335 | 331 |
| 334 | RR-5013 | 71.2 | 21.5 | 2378 | 718 | 509 | |
| 511 | RR-5020 | 71.2 | 21.5 | 3638 | 1099 | 733 | |
| 75 (718) | 156 | RR-756 | 102.6 | 31.4 | 1601 | 490 | 347 |
| 333 | RR-7513 | 102.6 | 31.4 | 3417 | 1046 | 525 | |
| 95 (933) | 168 | RR-1006 | 133.3 | 62.2 | 2238 | 1045 | 357 |
| 333 | RR-10013 | 133.3 | 62.2 | 4439 | 2071 | 524 | |
| 460 | RR-10018 | 133.3 | 62.2 | 6132 | 2861 | 687 | |
| 140 (1386) | 57 | RR-1502 | 198.1 | 95.4 | 1129 | 544 | 196 |
| 156 | RR-1506 | 198.1 | 95.4 | 3090 | 1488 | 385 | |
| 333 | RR-15013 | 198.1 | 95.4 | 6597 | 3177 | 582 | |
| 815 | RR-15032 | 198.1 | 95.4 | 16145 | 7775 | 1116 | |
| 200 (1995) | 152 | RR-2006 | 285.0 | 145.3 | 4332 | 2209 | 430 |
| 330 | RR-20013 | 285.0 | 145.3 | 9405 | 4795 | 608 | |
| 457 | RR-20018 | 285.0 | 145.3 | 13025 | 6640 | 765 | |
| 610 | RR-20024 | 285.0 | 145.3 | 17385 | 8863 | 917 | |
| 914 | RR-20036 | 285.0 | 145.3 | 26049 | 13280 | 1222 | |
| 1219 | RR-20048 | 285.0 | 145.3 | 34741 | 17712 | 1527 | |
| 325 (3201) | 153 | RR-3006 | 457.3 | 243.2 | 6997 | 3721 | 485 |
| 305 | RR-30012 | 457.3 | 243.2 | 13947 | 7418 | 638 | |
| 457 | RR-30018 | 457.3 | 243.2 | 20889 | 11114 | 790 | |
| 609 | RR-30024 | 457.3 | 243.2 | 27850 | 14811 | 943 | |
| 915 | RR-30036 | 457.3 | 243.2 | 41843 | 22253 | 1247 | |
| 1219 | RR-30048 | 457.3 | 243.2 | 55745 | 29646 | 1552 | |
| 440 (4292) | 152 | RR-4006 | 613.1 | 328.1 | 9319 | 4987 | 538 |
| 305 | RR-40012 | 613.1 | 328.1 | 18700 | 10007 | 690 | |
| 457 | RR-40018 | 613.1 | 328.1 | 28018 | 14995 | 843 | |
| 610 | RR-40024 | 613.1 | 328.1 | 37400 | 20014 | 995 | |
| 914 | RR-40036 | 613.1 | 328.1 | 56037 | 29988 | 1300 | |
| 1219 | RR-40048 | 613.1 | 328.1 | 74737 | 39996 | 1605 | |
| 520 (5108) | 153 | RR-5006 | 729.7 | 405.4 | 11164 | 6203 | 577 |
| 305 | RR-50012 | 729.7 | 405.4 | 22256 | 12365 | 730 | |
| 457 | RR-50018 | 729.7 | 405.4 | 33347 | 18526 | 882 | |
| 609 | RR-50024 | 729.7 | 405.4 | 44440 | 24689 | 1035 | |
| 915 | RR-50036 | 729.7 | 405.4 | 66768 | 36973 | 1339 | |
| 1219 | RR-50048 | 729.7 | 405.4 | 88951 | 49418 | 1644 | |
Cylinder Capacity ton | Stroke (mm) | Model Number | Max.Cylinder Capacity (KN) | Cylinder Effective Area (cm²) | Oil Capacity (cm³) | Coll. Height A (mm) | Ext. Height B (mm) | Outside Dia. D (mm) | |||
Push | Pull | Push | Pull | Push | Pull | ||||||
10 | 254 | RR-1010* | 101 | 33 | 14.5 | 4.8 | 368 | 122 | 409 | 663 | 73 |
305 | RR-1012* | 101 | 33 | 14.5 | 4.8 | 442 | 147 | 457 | 762 | 73 | |
30 | 209 | RR-308* | 295 | 53 | 42.1 | 19.1 | 879 | 400 | 395 | 604 | 101 |
368 | RR-3014* | 295 | 53 | 42.1 | 19.1 | 1549 | 703 | 549 | 917 | 101 | |
50 | 156 | RR-506 | 498 | 103 | 71.2 | 21.5 | 1111 | 335 | 331 | 487 | 127 |
334 | RR-5013 | 498 | 103 | 71.2 | 21.5 | 2378 | 718 | 509 | 843 | 127 | |
511 | RR-5020 | 498 | 103 | 71.2 | 21.5 | 3638 | 1099 | 733 | 1244 | 127 | |
75 | 156 | RR-756 | 718 | 156 | 102.6 | 31.4 | 1601 | 490 | 347 | 503 | 146 |
333 | RR-7513 | 718 | 156 | 102.6 | 31.4 | 3417 | 1046 | 525 | 858 | 146 | |
168 | RR-1006 | 933 | 435 | 133.3 | 62.2 | 2238 | 1045 | 357 | 525 | 177 | |
95 | 333 | RR-10013 | 933 | 435 | 133.3 | 62.2 | 4439 | 2071 | 524 | 857 | 177 |
460 | RR-10018 | 933 | 435 | 133.3 | 62.2 | 6132 | 2861 | 687 | 1147 | 177 | |
140 | 57 | RR-1502 | 1386 | 668 | 198.1 | 95.4 | 1129 | 544 | 196 | 253 | 203 |
156 | RR-1506 | 1386 | 668 | 198.1 | 95.4 | 3090 | 1488 | 385 | 541 | 203 | |
333 | RR-15013 | 1386 | 668 | 198.1 | 95.4 | 6597 | 3177 | 582 | 915 | 203 | |
815 | RR-15032 | 1386 | 668 | 198.1 | 95.4 | 16145 | 7775 | 1116 | 1931 | 203 | |
200 | 152 | RR-2006 | 1995 | 1017 | 285.0 | 145.3 | 4332 | 2209 | 430 | 582 | 247 |
330 | RR-20013 | 1995 | 1017 | 285.0 | 145.3 | 9405 | 4795 | 608 | 938 | 247 | |
457 | RR-20018 | 1995 | 1017 | 285.0 | 145.3 | 13025 | 6640 | 765 | 1222 | 247 | |
610 | RR-20024 | 1995 | 1017 | 285.0 | 145.3 | 17385 | 8863 | 917 | 1527 | 247 | |
914 | RR-20036 | 1995 | 1017 | 285.0 | 145.3 | 26049 | 13280 | 1222 | 2136 | 247 | |
RR-20048 | 1995 | 1017 | 285.0 | 145.3 | 34741 | 17712 | 1527 | 2746 | 247 | ||
325 | 153 | RR-3006 | 3201 | 1703 | 457.3 | 243.2 | 6997 | 3721 | 485 | 638 | 311 |
305 | RR-30012 | 3201 | 1703 | 457.3 | 243.2 | 13947 | 7418 | 638 | 943 | 311 | |
457 | RR-30018 | 3201 | 1703 | 457.3 | 243.2 | 20889 | 11114 | 790 | 1247 | 311 | |
609 | RR-30024 | 3201 | 1703 | 457.3 | 243.2 | 27850 | 14811 | 943 | 1552 | 311 | |
915 | RR-30036 | 3201 | 1703 | 457.3 | 243.2 | 41843 | 22253 | 1247 | 2162 | 311 | |
1219 | RR-30048 | 3201 | 1703 | 457.3 | 243.2 | 55745 | 29646 | 1552 | 2771 | 311 | |
440 | 152 | RR-4006 | 4292 | 2297 | 613.1 | 328.1 | 9319 | 4987 | 538 | 690 | 358 |
305 | RR-40012 | 4292 | 2297 | 613.1 | 328.1 | 18700 | 10007 | 690 | 995 | 358 | |
457 | RR-40018 | 4292 | 2297 | 613.1 | 328.1 | 28018 | 14995 | 843 | 1300 | 358 | |
610 | RR-40024 | 4292 | 2297 | 613.1 | 328.1 | 37400 | 20014 | 995 | 1605 | 358 | |
914 | RR-40036 | 4292 | 2297 | 613.1 | 328.1 | 56037 | 29988 | 1300 | 2214 | 358 | |
1219 | RR-40048 | 4292 | 2297 | 613.1 | 328.1 | 74737 | 39996 | 1605 | 2824 | 358 | |
520 | 153 | RR-5006 | 5108 | 2838 | 729.7 | 405.4 | 11164 | 6203 | 577 | 730 | 397 |
305 | RR-50012 | 5108 | 2838 | 729.7 | 405.4 | 22256 | 12365 | 730 | 1035 | 397 | |
457 | RR-50018 | 5108 | 2838 | 729.7 | 405.4 | 33347 | 18526 | 882 | 1339 | 397 | |
609 | RR-50024 | 5108 | 2838 | 729.7 | 405.4 | 44440 | 24689 | 1035 | 1644 | 397 | |
915 | RR-50036 | 5108 | 2838 | 729.7 | 405.4 | 66768 | 36973 | 1339 | 2254 | 397 | |
1219 | RR-50048 | 5108 | 2838 | 729.7 | 405.4 | 88951 | 49418 | 1644 | 2863 | 397 | |
| Cyl. Bore Dia. E (mm) | Plgr. Dia. F (mm) | Base to Adv. Port H (mm) | Top to Ret. Port I (mm) | Saddle Dia. J (mm) | Saddle Protr. fr. Plgr. K (mm) | Plunger Internal Thread O | Plunger Thread Length P (mm) | Base Mounting Holes | Collar Thread | Collar Thread Length X (mm) | Weight (KG) | Model Number | ||
| Bolt C. Dia. U (mm) | Thread V | Thd. Depth Z (mm) | ||||||||||||
| 42.9 | 34.9 | 36 | 57 | 35 | 6 | 1"-8 | 25 | – | – | – | 2¼"-14 | 26 | 12 | RR-1010* |
| 42.9 | 34.9 | 36 | 57 | 35 | 6 | 1"-8 | 25 | – | – | – | 2¼"-14 | 26 | 14 | RR-1012* |
| 73.2 | 54.1 | 39 | 81 | 50 | 10 | 1½"-16 | 25 | – | – | – | 35/16"-12 | 49 | 18 | RR-308* |
| 73.2 | 54.1 | 39 | 81 | 50 | 10 | 1½"-16 | 25 | – | – | – | 35/16"-12 | 49 | 29 | RR-3014* |
| 95.2 | 79.5 | 28 | 76 | 71 | 2 | 1"-12 | 25 | – | – | – | 5"-12 | 44 | 30 | RR-506 |
| 95.2 | 79.5 | 28 | 76 | 71 | 2 | 1"-12 | 25 | – | – | – | 5"-12 | 44 | 52 | RR-5013 |
| 95.2 | 79.5 | 57 | 76 | 71 | 2 | 1"-12 | 25 | 76 | ½"-13 | 25 | 5"-12 | 44 | 68 | RR-5020 |
| 114.3 | 95.2 | 30 | 76 | 71 | 6 | 1"-12 | 38 | – | – | – | 5¾"-12 | 38 | 41 | RR-756 |
| 114.3 | 95.2 | 30 | 81 | 71 | 6 | 1"-12 | 38 | – | – | – | 5¾"-12 | 38 | 68 | RR-7513 |
| 130.3 | 95.2 | 38 | 71 | 76 | 3 | 1¾"-12 | 35 | 139 | ¾"-10 | 25 | 67/8"-12 | 50 | 61 | RR-1006 |
| 130.3 | 95.2 | 38 | 71 | 76 | 3 | 1¾"-12 | 35 | 139 | ¾"-10 | 25 | 67/8"-12 | 50 | 93 | RR-10013 |
| 130.3 | 95.2 | 41 | 92 | 76 | 3 | 1¾"-12 | 35 | 139 | ¾"-10 | 25 | 67/8"-12 | 50 | 117 | RR-10018 |
| 158.8 | 114.3 | 22 | 66 | 95 | 19 | – | – | – | – | – | – | – | 49 | RR-1502 |
| 158.8 | 114.3 | 49 | 84 | 114 | 19 | 3³/8"-16 | 35 | 158 | ¾"-16 | 28 | 8"-12 | 55 | 93 | RR-1506 |
| 158.8 | 114.3 | 49 | 84 | 114 | 19 | 3³/8"-16 | 35 | 158 | ¾"-16 | 28 | 8"-12 | 55 | 124 | RR-15013 |
| 158.8 | 114.3 | 76 | 88 | 114 | 19 | 3³/8"-16 | 35 | – | – | – | 8"-12 | 55 | 238 | RR-15032 |
| 190.5 | 133.4 | 57 | 96 | 133 | 22 | – | – | 127 | 1"-8 | 25 | – | – | 147 | RR-2006 |
| 190.5 | 133.4 | 57 | 96 | 133 | 22 | 2½"-12 | 63 | 127 | 1"-8 | 25 | 9¾"-12 | 54 | 199 | RR-20013 |
| 190.5 | 133.4 | 85 | 101 | 133 | 22 | 2½"-12 | 63 | 127 | 1"-8 | 25 | 9¾"-12 | 54 | 204 | RR-20018 |
| 190.5 | 133.4 | 85 | 101 | 133 | 22 | 2½"-12 | 63 | 127 | 1"-8 | 25 | 9¾"-12 | 54 | 279 | RR-20024 |
| 190.5 | 133.4 | 85 | 101 | 133 | 22 | 2½"-12 | 63 | 127 | 1"-8 | 25 | 9¾"-12 | 54 | 383 | RR-20036 |
| 190.5 | 133.4 | 85 | 101 | 133 | 22 | 2½"-12 | 63 | 127 | 1"-8 | 25 | 9¾"-12 | 54 | 483 | RR-20048 |
| 241.3 | 165.1 | 88 | 114 | 165 | 28 | 2½"-12 | 82 | 158 | 1¼"-7 | 44 | 12¼"-12 | 58 | 200 | RR-3006 |
| 241.3 | 165.1 | 88 | 114 | 165 | 28 | 2½"-12 | 82 | 158 | 1¼"-7 | 44 | 12¼"-12 | 58 | 312 | RR-30012 |
| 241.3 | 165.1 | 88 | 114 | 165 | 28 | 2½"-12 | 82 | 158 | 1¼"-7 | 44 | 12¼"-12 | 58 | 385 | RR-30018 |
| 241.3 | 165.1 | 88 | 114 | 165 | 28 | 2½"-12 | 82 | 158 | 1¼"-7 | 44 | 12¼"-12 | 58 | 469 | RR-30024 |
| 241.3 | 165.1 | 88 | 114 | 165 | 28 | 2½"-12 | 82 | 158 | 1¼"-7 | 44 | 12¼"-12 | 58 | 628 | RR-30036 |
| 241.3 | 165.1 | 88 | 114 | 165 | 28 | 2½"-12 | 82 | 158 | 1¼"-7 | 44 | 12¼"-12 | 58 | 780 | RR-30048 |
| 279.4 | 190.5 | 108 | 133 | 190 | 28 | 3"-12 | 95 | 203 | 1½"-6 | 50 | 14½"-8 | 65 | 303 | RR-4006 |
| 279.4 | 190.5 | 108 | 133 | 190 | 28 | 3"-12 | 95 | 203 | 1½"-6 | 50 | 14½"-8 | 65 | 399 | RR-40012 |
| 279.4 | 190.5 | 108 | 133 | 190 | 28 | 3"-12 | 95 | 203 | 1½"-6 | 50 | 14½"-8 | 65 | 453 | RR-40018 |
| 279.4 | 190.5 | 108 | 133 | 190 | 28 | 3"-12 | 95 | 203 | 1½"-6 | 50 | 141/8"-8 | 65 | 597 | RR-40024 |
| 279.4 | 190.5 | 108 | 133 | 190 | 28 | 3"-12 | 95 | 203 | 1½"-6 | 50 | 141/8"-8 | 65 | 792 | RR-40036 |
| 279.4 | 190.5 | 108 | 133 | 190 | 28 | 3"-12 | 95 | 203 | 1½"-6 | 50 | 141/8"-8 | 65 | 980 | RR-40048 |
| 304.8 | 203.2 | 120 | 152 | 203 | 28 | 3¼"-12 | 108 | 203 | 1¾"-5 | 57 | 155/8"-8 | 79 | 432 | RR-5006 |
| 304.8 | 203.2 | 120 | 152 | 203 | 28 | 3¼"-12 | 108 | 203 | 1¾"-5 | 57 | 155/8"-8 | 79 | 589 | RR-50012 |
| 304.8 | 203.2 | 120 | 152 | 203 | 28 | 3¼"-12 | 108 | 203 | 1¾"-5 | 57 | 155/8"-8 | 79 | 680 | RR-50018 |
| 304.8 | 203.2 | 120 | 152 | 203 | 28 | 3¼"-12 | 108 | 203 | 1¾"-5 | 57 | 155/8"-8 | 79 | 816 | RR-50024 |
| 304.8 | 203.2 | 120 | 152 | 203 | 28 | 3¼"-12 | 108 | 203 | 1¾"-5 | 57 | 155/8"-8 | 79 | 1002 | RR-50036 |
| 304.8 | 203.2 | 120 | 152 | 203 | 28 | 3¼"-12 | 108 | 203 | 1¾"-5 | 57 | 155/8"-8 | 79 | 1224 | RR-50048 |
