Every minute a crane idles costs money. Every time a crew drags a beam across a concrete deck, something gets damaged—sometimes the steel, sometimes the floor, sometimes a hand.
In 2026, construction sites are running tighter schedules with higher labor costs and stricter safety enforcement than any previous generation of project management has required. Yet steel handling between unloading, staging, and installation points still relies on methods that haven't changed: drag it, roll it on pipes, or wait for the crane to come back.

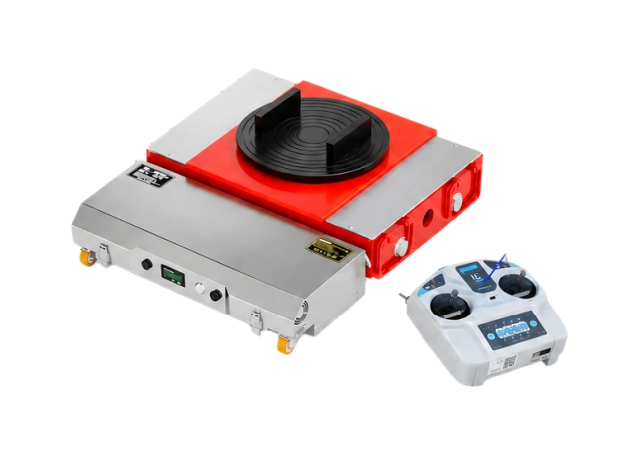

Specialized 4 wheel dollies designed as a dolly for moving steel beams solve the specific bottleneck between the crane pick point and the installation position—the short-distance, high-frequency repositioning moves that accumulate into hours of lost productivity and measurable incident risk per project. This guide explains how to specify the right configuration and get an accurate quote the first time.
A beam dolly is a clamping or saddle-style trolley frame that supports the beam flange—the horizontal element at the top and bottom of an I-beam or H-beam profile. The frame is adjustable to fit the flange width, and four wheels distribute the combined beam weight across the rolling surface.
The critical design feature is flange engagement: the dolly contacts the beam at its natural support geometry, maintaining the beam's orientation and preventing lateral roll or tip during movement. This is fundamentally different from balancing a beam on a pipe roller—the dolly retains the beam, not just supports it.
Two-wheel beam movers and improvised single rollers create tipping risk when the load shifts during movement or when the rolling surface is uneven. 4 wheel dollies provide a stable four-point rolling base that resists tipping in both the longitudinal and lateral directions, tracks predictably during pushes and turns, and distributes load across a larger contact area that reduces floor damage.
| Problem | Root Cause | How Beam Dollies Address It |
|---|---|---|
| Slow beam staging | Manual carry or dragging is slow and fatiguing | Controlled rolling moves beams faster with smaller crews |
| Crane idle time | Short repositioning moves still require crane hook | Dollies handle micro-moves; crane is freed for lifts |
| Pinch and strain incidents | Manual handling of heavy steel members | Rolling eliminates carrying; clamped support eliminates manual balance |
| Floor and coating damage | Dragging steel across concrete or steel deck | Rolling contact distributes load; no dragging |
| Misalignment at installation | No precise positioning method for final placement | Dolly allows incremental adjustment to exact position |
Ordering 4 wheel dollies without confirming these parameters produces the most common procurement problem in this category: dollies that don't fit the beam flange, wheels that degrade on the actual site surface, or capacity ratings that don't include an adequate safety margin for dynamic site conditions.
The most critical dimensional confirmation before ordering any dolly for moving steel beams:
| Parameter | What to Measure | Why It Matters |
|---|---|---|
| Flange width | Minimum and maximum flange width in the project's beam schedule | Sets the dolly clamp adjustment range required |
| Flange thickness | Minimum and maximum flange thickness | Determines clamp jaw gap and retention force |
| Beam height | Section depth from top to bottom flange | Confirms clearance within the dolly frame |
| Beam length | Length of longest member to be moved | Determines minimum number of dolly pairs required |
A dolly set that fits 80% of the beam schedule but not the heaviest section—where the risk is highest—is not an acceptable specification outcome.
Per-dolly capacity rating must be confirmed against the maximum load that any single dolly will carry—which is not simply the total beam weight divided by the number of dollies. For a beam supported on two dolly pairs, load distribution depends on the beam's weight distribution and any additional loads (rigging, attachments). Apply a minimum 2:1 safety factor over the calculated maximum single-dolly load for dynamic site movement conditions.
| Surface Type | Recommended Wheel | Avoid |
|---|---|---|
| Smooth concrete, finished floor | Polyurethane (PU) | Steel (marks surface) |
| Rough concrete, construction slab | Hard nylon or steel | PU (wears rapidly on abrasive surface) |
| Steel deck, grating | Steel or hard nylon | PU (catches on grating gaps) |
| Outdoor gravel or compacted ground | Steel | PU or nylon (debris damage) |
| Mixed indoor/outdoor routes | Steel with PU pads at sensitive zones | Single-material compromise |
Wheel diameter determines the ability to cross floor joints and surface debris without the wheel dropping into gaps or catching on edges. For construction sites with expansion joints and pour lines, a minimum 100mm wheel diameter is the practical lower limit.
Clamp adjustment range: confirm the quick-adjust mechanism covers the full flange width range in your beam schedule
Locking mechanism: once set to flange width, the clamp must positively lock and not back off under vibration
Retention under lateral load: the beam must not be able to walk off the dolly during a turn or when the push direction changes
Any site with grade changes—ramps, floor transitions, or outdoor slopes—requires a braking or wheel-locking mechanism on the dollies. A loaded beam on 4 wheel dollies on a 2% slope has enough mass to accelerate to a dangerous speed without positive mechanical restraint. Specify wheel locks or parking brakes and confirm the brake holds the rated load at the maximum site slope.
The right dolly for moving steel beams configuration depends on which workflow bottleneck you are solving. Different applications have different primary requirements.
The highest-value application for beam dollies on structural erection sites is reducing crane idle time at staging areas. The crane unloads a bundle of beams; the erection crew needs individual beams repositioned to pick points in sequence. Without dollies, this requires additional crane moves or manual handling that is slow and creates pinch hazards near suspended loads.
With 4 wheel dollies, the ground crew repositions beams independently between crane lifts—the crane idles only for actual picks, not for staging adjustments. On a typical structural erection sequence, this recovery of crane productivity compounds across dozens of picks per day.
Configuration priority: maximum load rating, fast clamp adjustment for different beam sizes in the same delivery, wheel locks for slope control near the crane path.
Steel fabrication workflows move beams through multiple stations: cutting, welding, grinding, QA, and assembly. Without rolling equipment, each transfer between stations requires a crane lift or forklift—both of which interrupt the workflow and create scheduling dependencies.
A dolly for moving steel beams between fabrication stations allows the production flow to operate independently of crane and forklift availability for transfer moves. The result is shorter lead times per fabricated assembly and fewer workflow interruptions.
Configuration priority: adjustable clamp for multiple beam sizes, smooth-floor wheel specification (concrete or steel floor), push bar for single-operator moves.
Mechanical, electrical, and plumbing installations use structural channels, angles, and lighter steel sections in tight corridor and ceiling spaces where forklifts cannot operate. Manual handling of these members over distances and through confined routes creates fatigue and musculoskeletal injury risk.
Smaller-frame 4 wheel dollies for lighter steel sections in these applications reduce the manual handling burden and allow single operators or two-person crews to move members that would otherwise require three or four people.
Configuration priority: compact frame for tight corridor clearances, lighter-duty rating matched to section weights, maneuverability for turns in confined spaces.
Long steel members—girders, bridge beams, heavy industrial supports—create specific handling challenges because the distance between support points determines the load per dolly and the stability of the assembly during movement. Multiple dolly pairs must be coordinated to maintain the beam's alignment and prevent bending stress from dynamic loads during movement.
Configuration priority: high per-dolly load rating, synchronization of movement between multiple dolly pairs, tow bar or winch-assist connection for controlled travel speed.
Renovation and retrofit projects often have the highest handling difficulty: existing structure limits access, floor ratings may be reduced, and crane positioning is restricted by the building envelope. These are the sites where a dolly for moving steel beams provides the greatest relative value—replacing crane and forklift moves that are either impossible or excessively expensive in restricted-access conditions.
Configuration priority: compact dimensions for access through standard door openings, PU wheels for finished floor protection, low-profile frame for reduced overhead clearance requirement.
Before placing any order for 4 wheel dollies, measure or confirm from the structural drawings:
Minimum and maximum flange width across all beam sizes in the project's beam schedule
Flange thickness at the thinnest and thickest sections
Section depth for the deepest beam to be handled
Confirm that the dolly's adjustment range covers the full spread from minimum to maximum—not just the most common size.
Walk the actual route before specifying wheel type and braking:
Map surface types along the full route: concrete slab, steel deck, outdoor gravel, transitions
Measure maximum slope at any point on the route
Identify floor joints wider than 20mm that may catch small-diameter wheels
Note turning radius constraints at direction changes
Identify debris sources (weld spatter, bolt boxes, site waste) that require wheel debris tolerance
Manual push: requires push bar at each end of the dolly pair; confirm push force is within manual handling guidelines for the rated load on the maximum slope
Tow behind telehandler or tractor: requires tow eye rated for the towing force; confirm tow speed limits
Winch-assisted: for controlled travel on slopes; confirm winch attachment point load rating
Document and communicate before the dollies are loaded:
Maximum travel speed (typically walking pace for manual push)
Spotter requirement: minimum one spotter at the leading end for all moves
Exclusion zones: no personnel in front of travel direction
Slope limits: maximum grade for unassisted movement; braking required above defined slope
Load limit per dolly: posted on the dolly and in the site safety plan
Clamp fit test: confirm adjustment range covers minimum and maximum flange widths in the project schedule
Wheel rotation: all four wheels rotate freely without resistance or wobble
Brake function: wheel lock or parking brake holds against manual push load at the maximum site slope
Load rating label: confirmed readable and matches the specified capacity
Post-use inspection (after each shift or major move sequence)
Wheel condition: flat spots from static loading, cracking on PU wheels, chunking at edges
Bearing condition: smooth rotation, no lateral play, no grinding noise
Clamp mechanism: jaw alignment, locking pin engagement, thread condition on adjusting screws
Fastener torque: wheel axle retention, frame assembly bolts
Brake function: confirm wheel lock engages and holds
Periodic maintenance
Lubrication: wheel axle bearings and clamp adjustment threads at defined intervals
Corrosion control: paint touch-up on frame members and wheel axles for equipment stored outdoors
Load rating verification: confirm no structural deformation of frame members after heavy use cycles
For a site with four to eight dolly pairs in active use, minimum on-site spares:
Wheel sets (matched to the specified wheel material): two complete wheel sets per dolly type
Wheel axle pins and retention hardware
Clamp jaw assemblies for the heaviest-use position
Brake components if site-repairable
| Metric | Measure Method | Typical Improvement |
|---|---|---|
| Crane idle time for staging | Minutes per beam pick vs baseline | 15–30% reduction in staging crane time |
| Labor time per beam repositioned | Crew minutes per move | 40–60% reduction vs manual carry |
| Damage incidents: steel/floor | Monthly incident log | Reduction from elimination of dragging |
| Safety near-misses: pinch/strain | Safety observation log | Reduction from controlled rolling vs manual |
For a structural steel project handling 50–100 beams per week, the cumulative time saving from reduced crane idle and manual handling typically recovers the cost of a complete dolly inventory within the first two to three weeks of active use.
Steel moves fast when the equipment is matched to the task. 4 wheel dollies designed as a dolly for moving steel beams solve the specific bottleneck between unloading, staging, and installation—the short-distance, high-frequency moves that accumulate into hours of crane idle time and crew labor per project.
The right configuration is not a generic heavy-duty dolly. It is a clamp-adjusted, appropriately-wheeled, brake-equipped assembly matched to the specific beam flange dimensions, site surface, and route conditions of the project. Provide those parameters and the correct specification follows directly from the technical requirements.
Visit the product page and submit your operating conditions, quantity, size or specifications, target performance indicators, and current problems to receive the best-fit model and pricing:
Q1: What are 4 wheel dollies used for on construction sites?
4 wheel dollies for steel beam handling are heavy-duty, adjustable-clamp rolling movers that support I-beam and H-beam flanges to enable controlled repositioning of steel members across site surfaces. They are used for short-distance staging moves between crane pick points, transfers between fabrication stations, and final positioning adjustments during installation—replacing manual carrying, pipe rolling, and short-distance crane moves that are slow, hazardous, or damaging to floors and surfaces.
Q2: How is a dolly for moving steel beams different from using rollers or pipes?
A purpose-built dolly for moving steel beams clamps to the beam flange and retains the beam in a defined position during movement—the beam cannot slip, roll off, or tip during a push or turn. Improvised pipe rollers provide no retention: the beam is balanced on the rollers and can walk off laterally or tip if the push force is not perfectly centered. Pipe rollers have no load rating, no braking capability, and provide no protection against floor damage from concentrated contact. For any move involving a rated load on a construction site, purpose-built beam dollies with defined capacity ratings and positive retention are the appropriate equipment.
Q3: What ROI or payback can we expect from I-beam dollies?
ROI for 4 wheel dollies on structural steel projects comes from three measurable sources: reduced crane idle time during staging (the crane can perform lifts while the ground crew repositions beams independently on dollies); reduced crew labor per beam (two operators with dollies replace a four-to-six person team manually carrying or guiding a beam on improvised rollers); and reduced damage and incident costs (elimination of dragging removes the primary source of floor damage and steel surface damage, and controlled rolling reduces manual handling injury risk). For a project handling 50+ beams per week, the combined savings typically recover the dolly investment within two to four weeks of active use.
Q4: Do we need to modify beams or the site to use these dollies safely?
No beam modification is required—the adjustable clamp fits the existing flange geometry. Site preparation is typically limited to: debris removal from the move route (metal shavings, bolt hardware, and construction debris can damage wheels or cause loss of control); floor joint assessment (joints wider than the wheel diameter require bridging plates); and slope controls (mechanical load retention—chains, come-alongs, or winch attachment—is required for any grade above the safe unassisted limit, which should be confirmed in the dolly's operating specification). Clear operating rules (maximum speed, spotter positions, exclusion zones, braking requirements) must be documented and communicated before first use.
Q5: What information should we provide to select and quote the right 4 wheel dollies?
To receive an accurate matched recommendation for a dolly for moving steel beams, provide: beam type (I-beam, H-beam, channel) and size range covering all sections in the project schedule (flange width, flange thickness, section depth); maximum beam weight and length; move route surface type and condition (smooth concrete, rough slab, steel deck, outdoor, transitions); maximum slope on the route; indoor or outdoor operating environment and weather exposure; required wheel material if known; braking or wheel-lock requirement; handling method (manual push, tow, winch-assisted); quantity of dolly pairs required; and current problems you want to solve (slow staging, crane idle time, floor damage, unsafe manual handling, limited forklift access).
